Type: ATX12V
Maximum Power: 650W
Efficiency: Up to 85% (80 PLUS Certified)
PFC: Active PFC (PF up to 99%)
Fan: 1 × 120 mm ultra-quiet, temperature-controlled
Modular: No
Main Connector: 20+4 Pin
+12V Rails: Dual 12V Rails
SLI: SLI Ready
CrossFire: CrossFire Ready

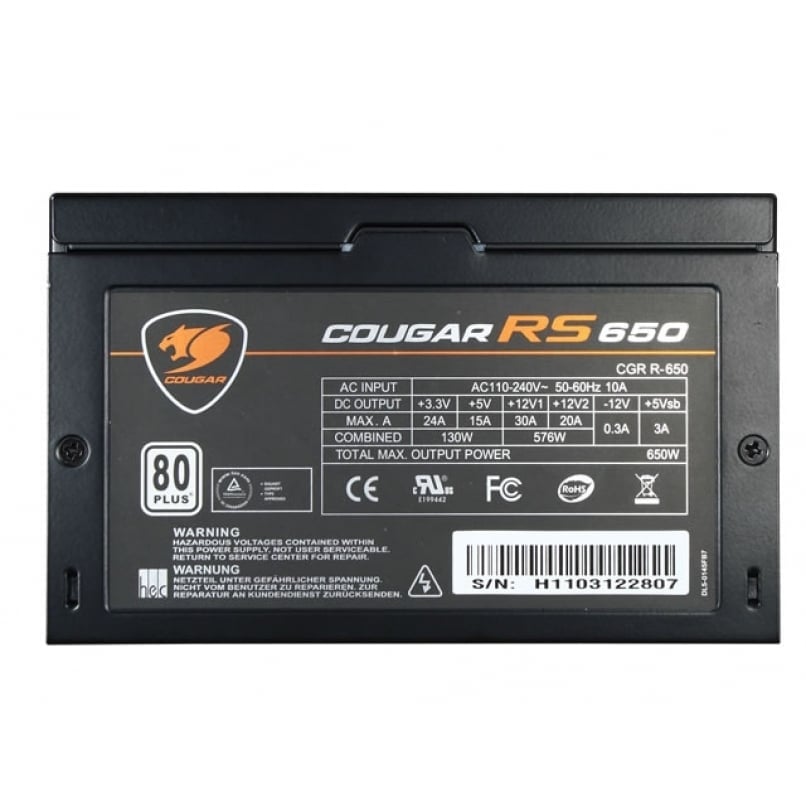

Input
Voltage: 100–240V
Frequency: 50/60 Hz
Current: 10A
Output
+3.3V: 24A
+5V: 15A
+12V1: 30A
+12V2: 20A
–12V: 0.3A
+5VSB: 3.0A

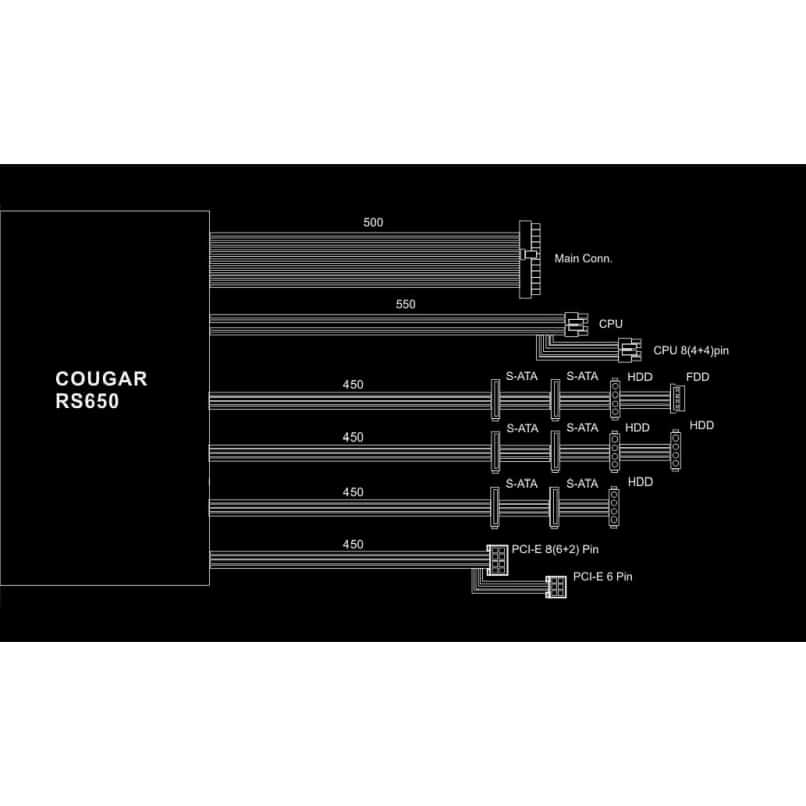

Connectors
• 1 × 20+4 Pin Main Connector
• 1 × 4+4 Pin CPU
• 1 × 8 Pin CPU
• 1 × PCI-E 6 Pin
• 1 × PCI-E 6+2 Pin
• 6 × SATA
• 4 × Peripheral (Molex)
• 1 × Floppy (FDD)
Dimensions
5.51" × 5.91" × 3.39"
Key Features
• Extremely high efficiency — up to 85%, 80 PLUS Certified
• Active PFC — clean and stable power, PF up to 99%
• Compatible with latest ATX12V specs and next-gen CPUs
• Highest durability Japanese capacitors
• Ultra-quiet 120 mm temperature-controlled fan
• Integrated air inlet for optimal airflow and silent performance
• Dynamic Dual 12V — automatic load distribution for GPU/CPU
• All-in-one cable: SATA + Molex on same line
• ErP 2009/125/EC compliant (<0.5W standby power)
• Full protections: UVP, OVP, SCP, OPP, OCP
