CPU Sockets Supported: Intel LGA 1156, LGA 1366, LGA 775; AMD AM3, AM2+, AM2, FM1, FM2
CPU Support Intel: Core i3, Core i5, Core i7, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium D, Pentium 4, Celeron D, Celeron
CPU Support AMD: Phenom II X4, Phenom, Athlon 64 FX, Athlon 64 X2, Athlon 64, Sempron
Recommended Solution: Desktop
Overall Dimensions: 124 × 148 × 120 mm
Weight: 795 g

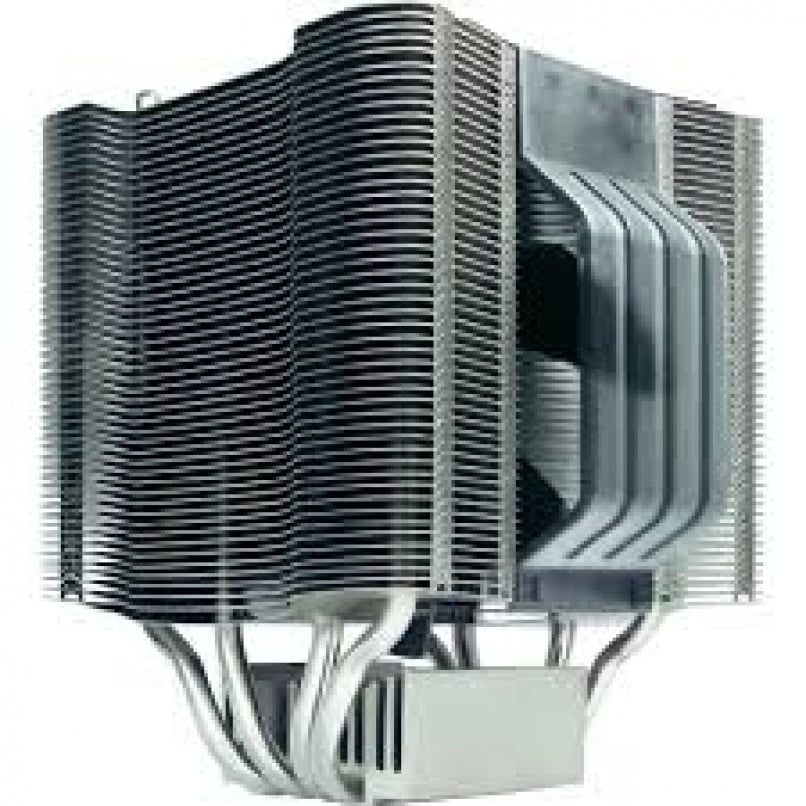

Material: Aluminum fins with 4 × Ø6 mm heatpipes (HTC structure)
Fan Dimensions: 120 × 120 × 25 mm
Fan Speed (0–20% Duty): 1000 RPM
Fan Speed (50% Duty): 1300 RPM
Fan Speed (100% Duty): 1600 RPM
Bearing Type: Sleeve Bearing
Rated Voltage: 12 V
Power Consumption (0–20%): 0.6 W
Power Consumption (50%): 1.2 W
Power Consumption (100%): 5.4 W
Air Flow (0–20%): 42.5 CFM
Air Flow (50%): 55.2 CFM
Air Flow (100%): 68.0 CFM
Noise Level (0–20%): 19.1 dBA
Noise Level (50%): 23.8 dBA
Noise Level (100%): 26.0 dBA
Air Pressure (0–20%): 0.539 inch-H2O
Air Pressure (50%): 0.91 inch-H2O
Air Pressure (100%): 1.379 inch-H2O
