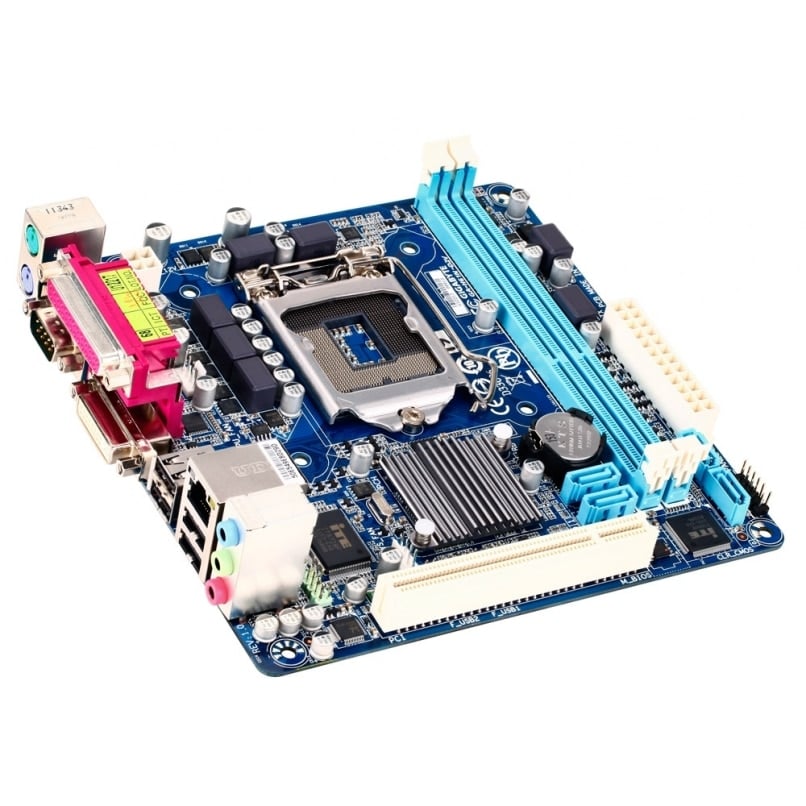

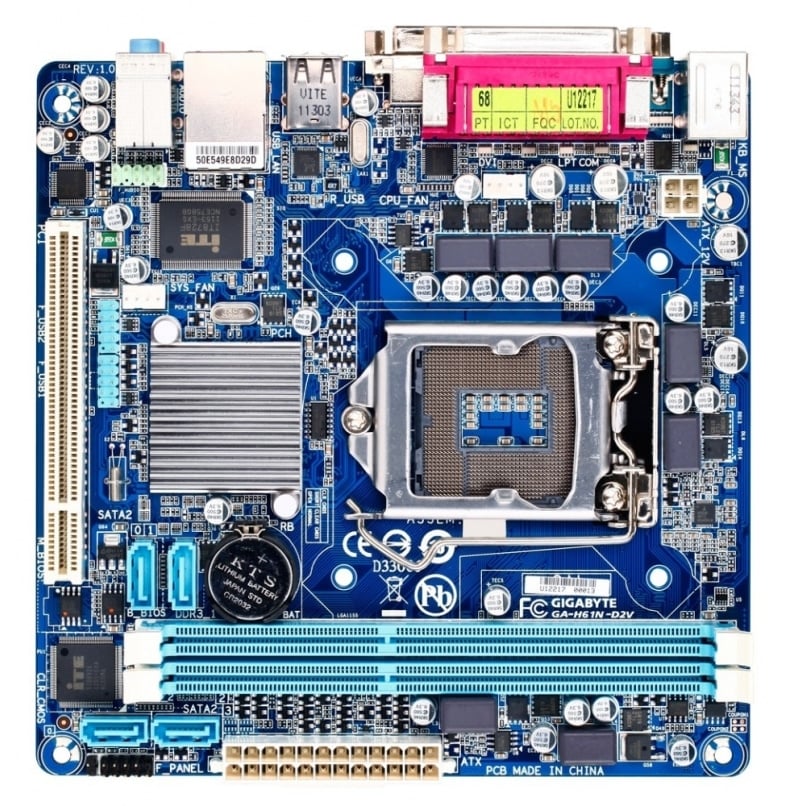

Ultra Durable 4 classic design
Supports 3rd Gen Intel 22nm CPUs and 2nd Gen Intel Core CPUs (LGA1155)
All solid capacitor motherboard design
DVI-I interface for HD video playback
Enhanced Intel HD Graphics 2000/3000
Dual UEFI BIOS with 3TB+ HDD support
CPU Support: Intel Core i7/i5/i3, Pentium, Celeron (LGA1155)
Chipset: Intel H61 Express
Memory: 2 x DDR3 DIMM sockets, up to 16GB
Memory Support: DDR3 2200(OC)/1600/1333/1066 MHz
Memory Features: Dual Channel, non-ECC, XMP support
Onboard Graphics: DVI-I 1920×1200
Audio: Realtek ALC887 HD Audio
Audio Channels: 2/4/5.1/7.1
LAN: Realtek Gigabit LAN (10/100/1000 Mbps)
Expansion Slot: 1 x PCI
Storage: 4 x SATA 3Gb/s ports
USB Ports: 8 x USB 2.0/1.1 (4 rear, 4 internal)
Internal Connector: 24-pin ATX power
Internal Connector: 4-pin ATX 12V
Internal Connector: CPU fan
Internal Connector: system fan
Internal Connector: front panel
Internal Connector: front panel audio
Internal Connector: 2 x USB 2.0 headers
Internal Connector: Clear CMOS jumper

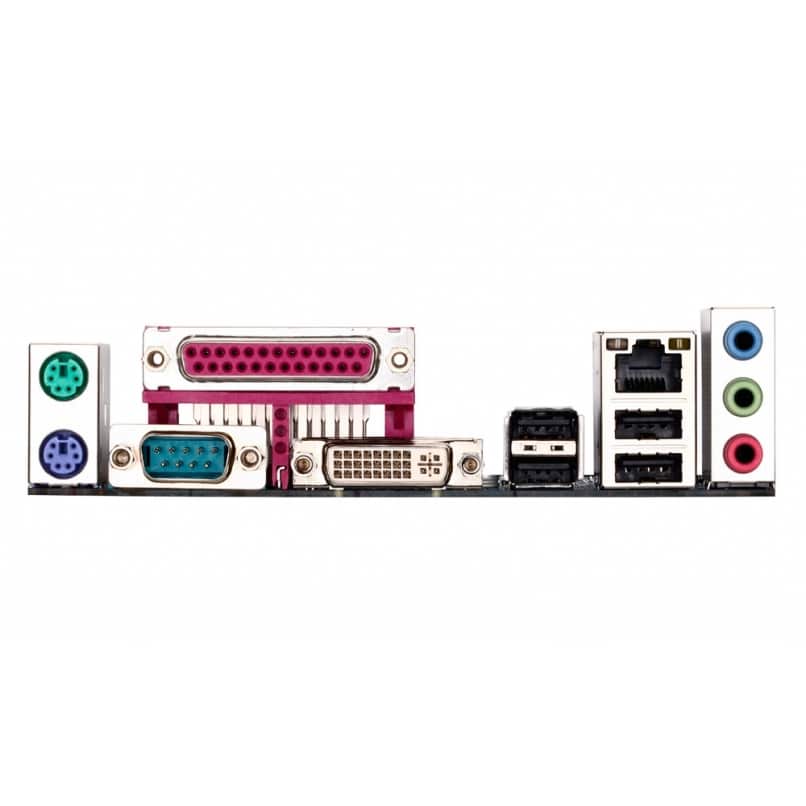

Back Panel: PS/2 keyboard
Back Panel: PS/2 mouse
Back Panel: serial port
Back Panel: parallel port
Back Panel: DVI-I
Back Panel: 4 x USB 2.0
Back Panel: RJ-45
Back Panel: 3 x audio jacks
I/O Controller: iTE controller
Monitoring: Voltage, temperature, fan speed
BIOS: DualBIOS, 2 x 32Mbit AMI EFI BIOS
BIOS Features: Q-Flash, @BIOS, Xpress Recovery2, EasyTune, ON/OFF Charge
Software: Norton Internet Security OEM
OS Support: Windows 8 / 7 / Vista / XP
Form Factor: Mini-ITX, 17 cm x 17 cm
