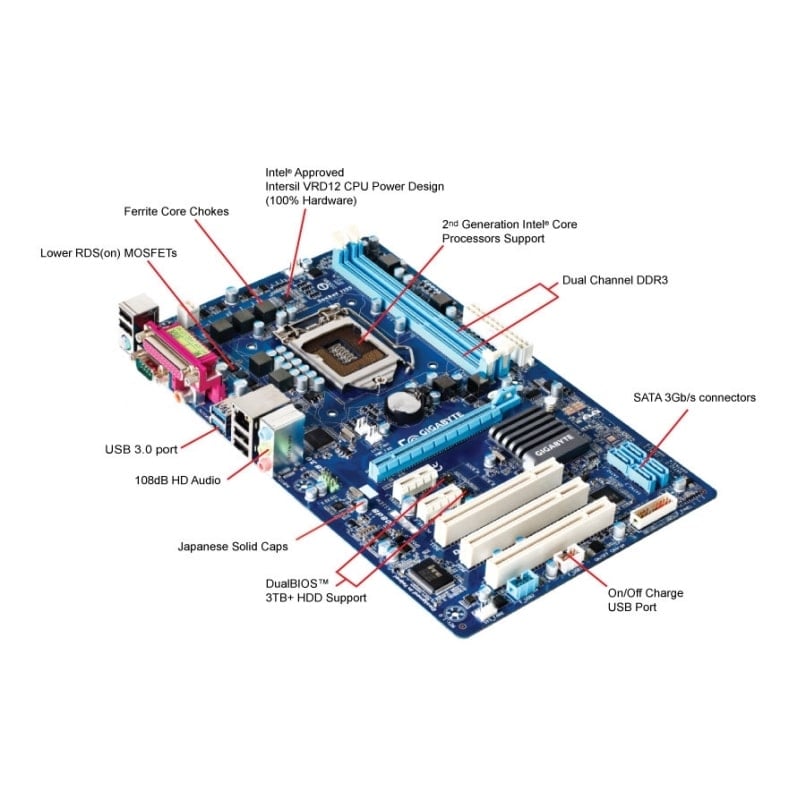

Supports Intel new B3 stepping 6 series chipset
Supports LGA1155 2nd Generation Intel Core Processors
4 Phase CPU Power design
Japanese Solid Capacitor Motherboard Design
USB 3.0 up to 5 Gbps
3x USB power for better device compatibility
Smart 6 technology
108dB SNR Blu-ray/DVD audio playback
DualBIOS with 3TB+ HDD boot support
CPU Support: Intel Core i7/i5/i3, Pentium, Celeron (LGA1155)
Chipset: Intel H61 Express
Memory: 2 x DDR3 DIMM sockets, up to 16GB
Memory Support: DDR3 1333/1066/800 MHz
Memory Features: Dual Channel, non-ECC
Audio: Realtek ALC889 HD Audio
Audio Channels: 2/4/5.1/7.1-channel
Digital Audio: S/PDIF Out
LAN: Realtek RTL8111E Gigabit LAN
PCIe Slot: 1 x PCIe x16 (x16 mode)
PCIe Slots: 2 x PCIe x1
PCI Slots: 3 x PCI
Storage: 4 x SATA 3Gb/s ports
USB 2.0: Up to 8 ports
USB 3.0: 2 ports (Etron EJ168 controller)
Internal Connector: 24-pin ATX power
Internal Connector: 4-pin ATX 12V
Internal Connector: CPU fan header
Internal Connector: 2 x system fan headers
Internal Connector: power fan header
Internal Connector: front panel
Internal Connector: front panel audio
Internal Connector: S/PDIF Out
Internal Connector: 2 x USB 2.0 headers
Internal Connector: Clear CMOS jumper
Internal Connector: 4 x SATA 3Gb/s ports
Back Panel: PS/2 keyboard/mouse
Back Panel: Parallel port
Back Panel: Serial port
Back Panel: Coaxial S/PDIF Out
Back Panel: 4 x USB 2.0
Back Panel: 2 x USB 3.0
Back Panel: RJ-45
Back Panel: 3 x audio jacks
I/O Controller: iTE IT8728
Monitoring: Voltage, temperature, fan speed
BIOS: DualBIOS, 2 x 32Mbit, AWARD BIOS
BIOS Features: Q-Flash, Xpress BIOS Rescue, EasyTune, Smart 6
Software: Norton Internet Security OEM
OS Support: Windows 8 / 7 / Vista / XP
Form Factor: ATX, 30.5 cm x 19.0 cm
